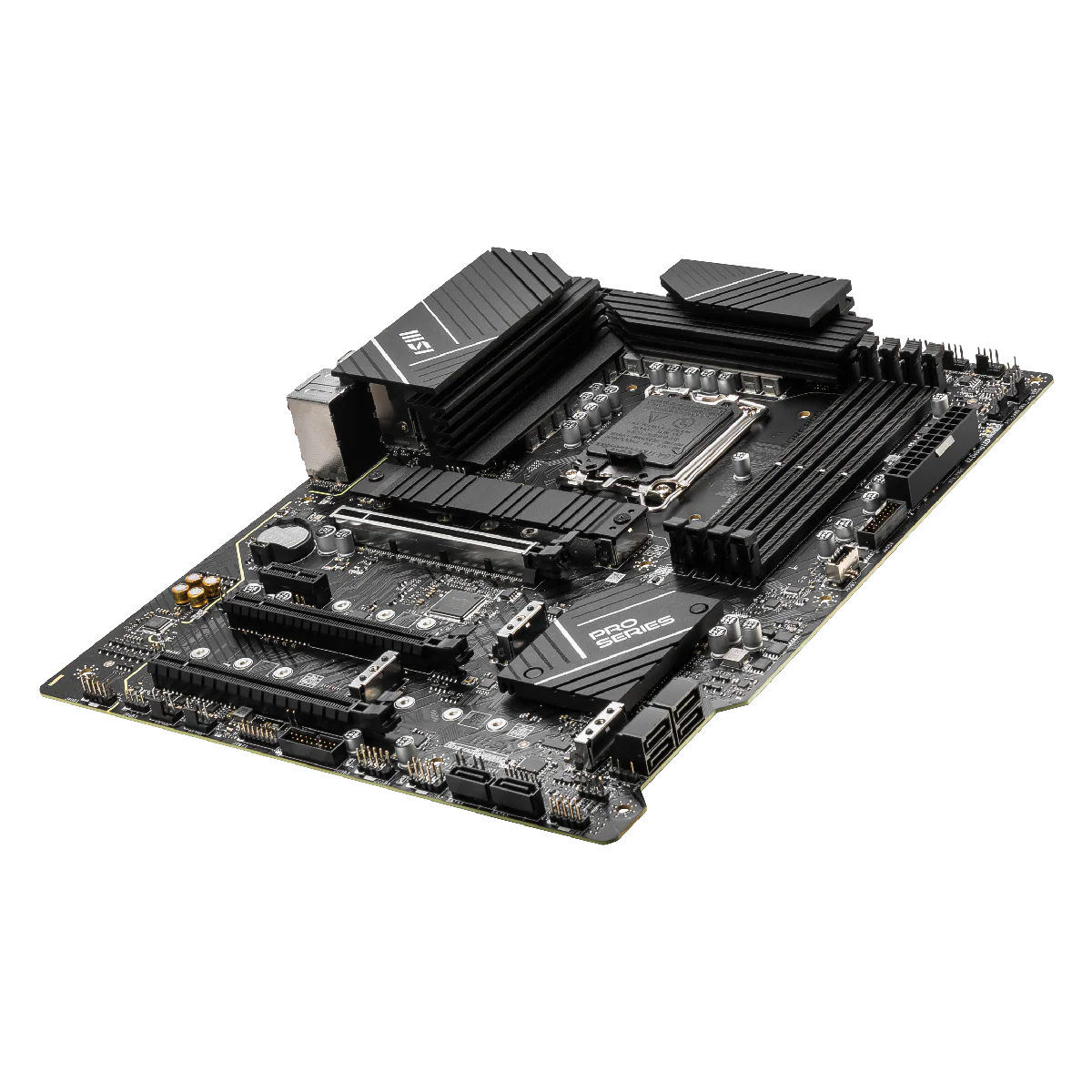

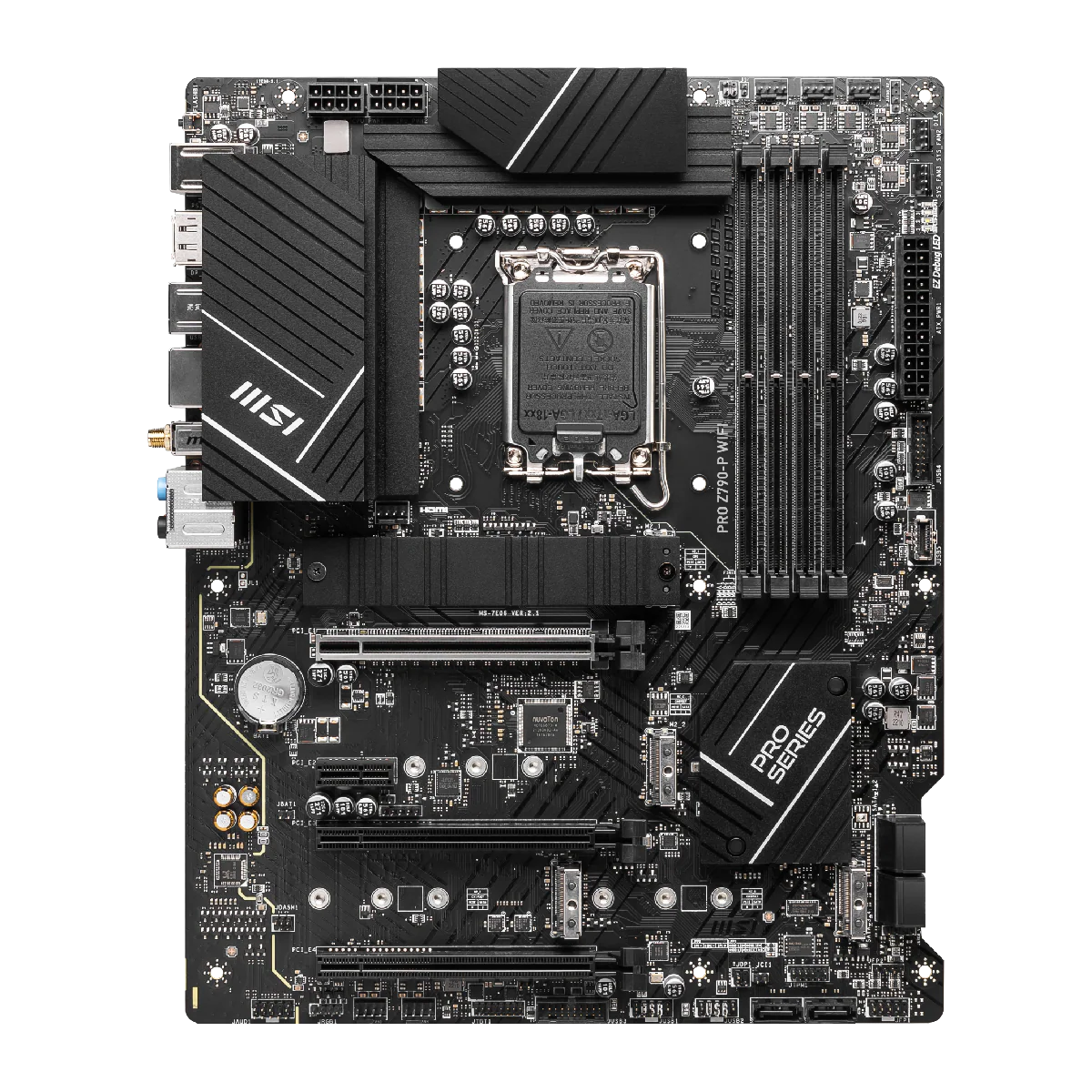

PRO Z790-P WIFI

Compatible con procesadores Intel^® Core™ de 14ª, 13ª y 12ª generación, procesadores Intel^® Pentium^® Gold y Celeron^® para socket LGA 1700
Compatible con memoria DDR5, Doble Canal DDR5 7000+ MHz (OC)
Diseño de alimentación mejorado: 14+1+1 DRPS con 55A DrMOS, conectores de alimentación de CPU duales de 8 pines, Core Boost, Memory Boost
Solución térmica premium: Disipador de calor extendido, almohadillas térmicas MOSFET con una calificación de 7W/mK, almohadillas térmicas adicionales para chokes y M.2 Shield Frozr están diseñados para un sistema de alto rendimiento y una experiencia gaming sin interrupciones
PCB de alta calidad: PCB de 6 capas hecho con cobre engrosado de 2oz y material de nivel de grado servidor
Experiencia Lightning Fast: Ranura PCIe 5.0, M.2 Lightning Gen 4 x4, USB 3.2 Gen 2x2
Intel Turbo USB 3.2 Gen 2: Impulsado por el controlador Intel USB 3.2 Gen2, Turbo USB asegura una conexión ininterrumpida con mayor estabilidad y las velocidades USB más rápidas
LAN de 2.5G con solución Wi-Fi 6E: Solución de red mejorada para uso profesional y multimedia. Proporciona una conexión de red segura, estable y rápida
Audio Boost: Recompensa tus oídos con calidad de sonido de grado de estudio para la experiencia gaming más inmersiva

Chipset	INTEL Z790
CPU	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors Intel® Pentium® Gold and Celeron® Processors LGA 1700
Memory	4x DDR5, Maximum Memory Capacity 256GB Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC) 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: 1DPC 1R Max speed up to 7000+ MHz 1DPC 2R Max speed up to 6600+ MHz 2DPC 1R Max speed up to 6400+ MHz 2DPC 2R Max speed up to 5600+ MHz Supports Intel^® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Onboard Graphics	1x HDMI™ (Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz) 1x DisplayPort (Support DP 1.4, maximum resolution of 4K 60Hz) *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	3x PCI-E x16 slot (Qty) 1x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage	4x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G (Qty)
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 2.0 ports (Rear) 4x USB 2.0 ports (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear)
LAN	Intel^® 2.5Gbps LAN
WIRELESS LAN & BLUETOOTH	Intel^® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth^® 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Audio	Realtek^® ALC897 Codec 7.1-Channel High Definition Audio
Internal IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
LED FEATURE	4x EZ Debug LED

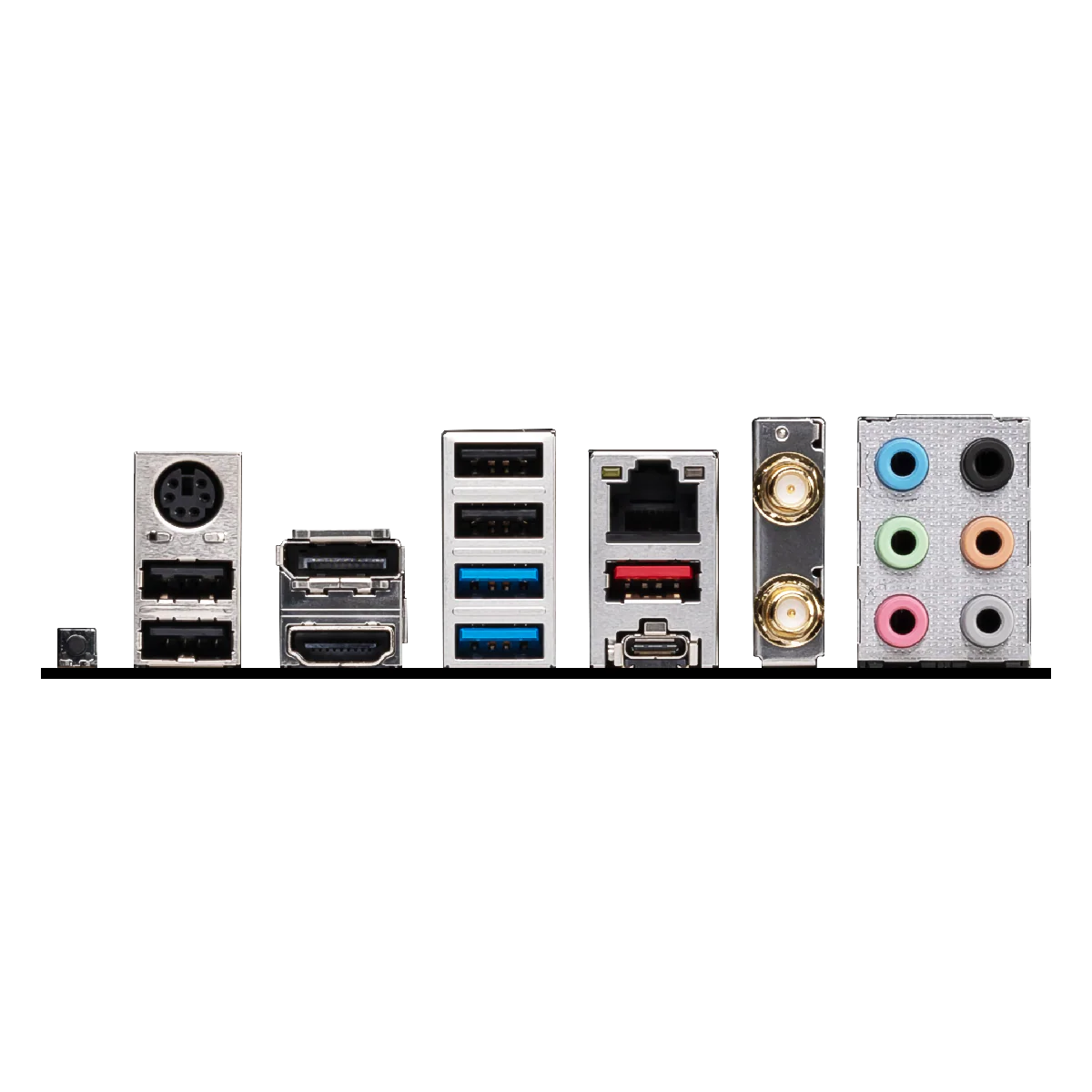

BACK PANEL PORTS	Keyboard / Mouse DisplayPort USB 2.0 2.5G LAN Wi-Fi / Bluetooth Audio Connectors Flash BIOS Button USB 2.0 HDMI™ USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2x2 20Gbps (Type-C) USB 3.2 Gen 2 10Gbps (Type-A)
OPERATING SYSTEM	Support for Windows^® 11 64-bit Windows^® 10 64-bit
BOX CONTENT
PCB Info	ATX 243.84mmx304.8mm
